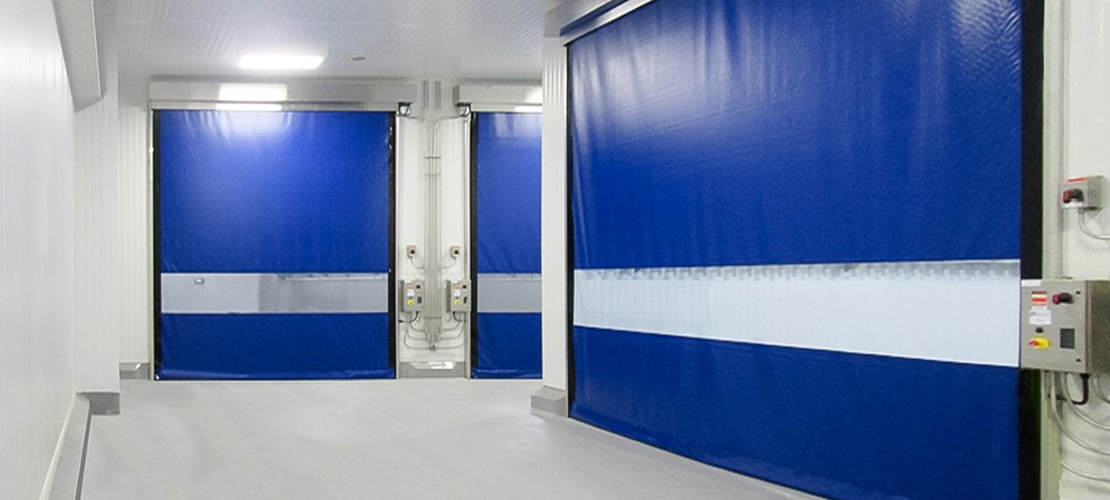

Model 515 / High speed interior fabric roll-up door

Low Profile, High Speed Fabric Roll-Up Door

High speed. Low profile.

With opening speeds up to 50” per second, our Model 515 low profile, high speed fabric roll up door will provide increased material handling while minimizing air exchange and increasing energy efficiencies.

Utilizing simple, clean, low-maintenance construction, the 515 features an automatic curtain reset feature that requires no special tools or downtime. If the curtain becomes displaced from its track in either direction, it will automatically reset on the next upward cycle.

Request a Quote

Door Sizes

  • Up to 17’ wide x 17’ high. (Other sizes available - consult factory.)

Construction

  • Multi-filament PVC coated curtain material, FDA compliant
  • Blue or orange color curtain standard. (Other colors available upon request.)
  • No windknobs or windbars required.
  • Soft bottom edge - no bottom bar required.
  • Side frames constructed with 12 ga., galvanized steel.
  • Side frames designed for maximum durability and utilize a UHMW guide track
  • 20 ga. galvanized shrouds enclose the curtain roll and drive motor. (Optional)
  • Standard lintel seal.

Operator Features

  • High performance, high efficiency, washdown rated 1 or 2 hp electric motor
  • Available in 115/208/230v single phase, or 460v three phase power
  • Absolute encoder controlled - washdown rated
  • Adjustable open and close speeds up to 50”/sec. (50”/sec. open and 32”/sec. close std)
  • Send & Receive reversing photo-eye package include

Performance Features

  • Standard pushbutton to open and time delay to close
  • Send and receive reversing photo-eye (std).
  • Soft bottom edge with washdown rated wireless electronic instant reversing edge
  • Breakaway curtain with automatic reset from either direction
  • Manual motor override for opening without power

Options

  • Pull cords.
  • Remote push buttons.
  • Photo-eyes - actuator or reversing
  • Radio control - single or multi-channel receiver
  • Loop detector
  • Motion detector
  • Touchless activation devices
  • Custom designed interlocking system
  • Barrel and operator shrouds - stainless or galvanized
  • Side guide covers - stainless or galvanized
  • Battery back-up system (1 hp, 115 VAC only).
  • Pre-announce to close kit (light/alarm/or combo).
  • 28” full width PVC vision panel.
  • 24” X 24” windows.
  • Stainless steel construction
  • Dual Send & Receive reversing photo-eye package

Warranty

  • One year limited warranty on all components
