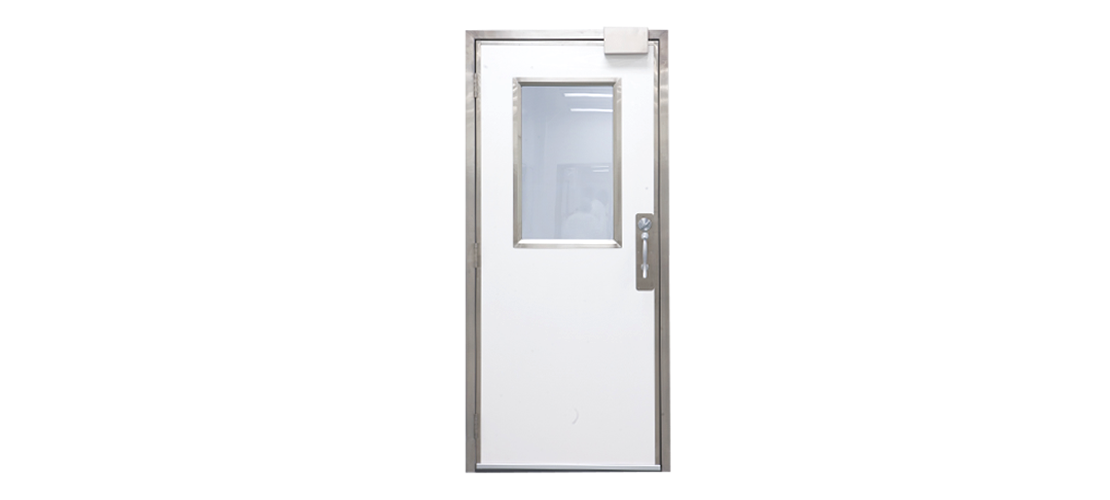

Model 220 & 225 / Single swinging fiberglass door

Manual and Power Single Swinging Doors

High performance swinging doors for sterile Environments

ASI Doors’ single swinging seamless molded fiberglass doors are non-porous, non-shedding, non-absorptive and ideal for sterile environments. Our seamless panels withstand fingerprints, fading and corroding, even when using harsh chemicals such as Vesphene, LPH, or SporKlenz. With our all inclusive program, we can engineer a complete interlock/access control system, packaged with the doors and hardware to ensure flawless installation and start-up.

Request a Quote

Door Sizes

  • Up to 4' x 9' (For additional sizes - consult factory)


  • 1-3/4” thick structural seamless molded fiberglass panel with polyester gel-coat finish, non-porous, non-shedding and non-absorptive
  • High-density closed cell poured-in-place polyurethane foam core
  • All hardware locations reinforced with internal backing plates
  • 20 ga. stainless steel edge capping for added protection and durability
  • White color standard (other colors available)
  • 16 ga., 304 #4 stainless steel fully welded and polished (through frame faces and throat) stainless steel with 20 ga. stainless steel covers
  • Available in single or double rabbet construction
  • Prepped for a wide variety of hardware options


  • Grade 1 Architectural hardware standard
  • Hager BB1191 standard weight stainless steel fully mortised hinges
  • LCN 4041 heavy-duty closer
  • Stainless steel push/pull hardware
  • Frame mounted, three sided bulb type perimeter gasket and bottom sweep gasket


  • Manual open with standard spring assist closer
  • Power operation utilizing an electromechanical operator, microprocessor controlled in 120 volt, single phase, with mechanical spring close
  • Operator completely enclosed within a 16 ga. 304 #4 stainless steel sloped shroud
  • Overhead presence sensor to provide threshold and swing slide obstruction detection
  • Activation device to open; time delay to close
  • In case of power failure, door can be opened manually


  • Vision panel with standard sloped frame
  • Cleanview® flush vision panel
  • All stainless steel construction available in 316L
  • 14 ga. stainless steel frames
  • Stainless steel clad panel (Fire rated and non-rated)
  • Custom designed interlocking system
  • Hospital stops 4” or 6”
  • Stainless steel closer cover
  • Can provide any major lines and grades of architectural hardware
  • Custom color (consult factory)
  • Touch-less wall-mounted activation switch
  • Actuators: Variety of activation devices available


  • Two year limited warranty on all components
