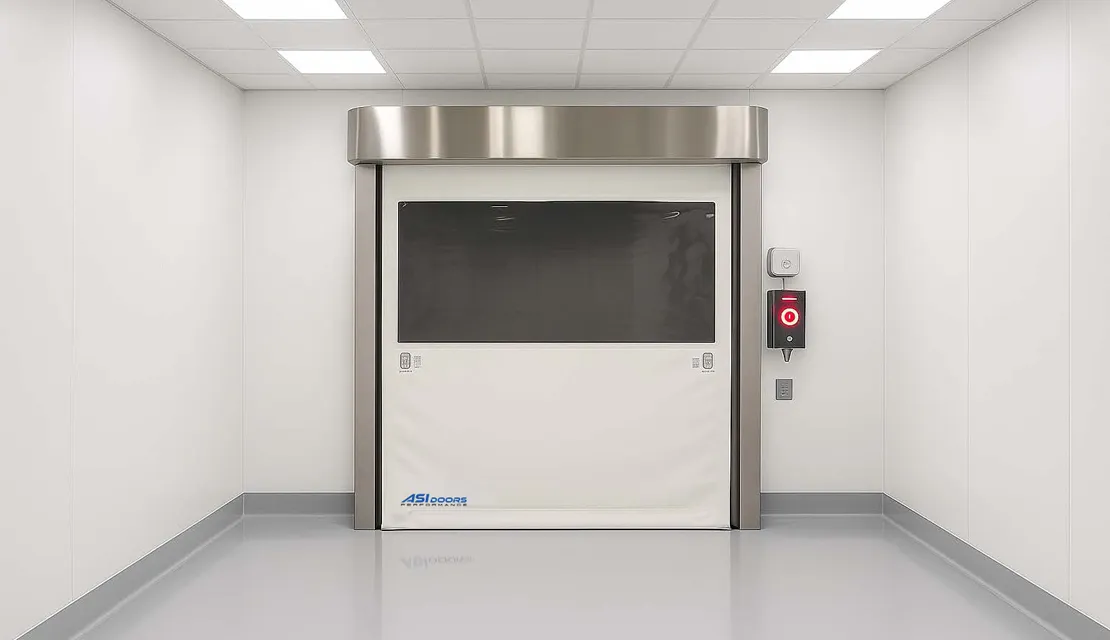

315 High-Performance Cleanroom Fabric Door

High-Performance Cleanroom Fabric Door

The best cleanroom fabric door in the industry just got smaller and faster.

The ISO-Roll® 315 offers a fresh take on our popular line of highspeed fabric doors. A powerful motor mounted inside the drive tube is combined with a durable heavy-duty fabric curtain, stainless steel components, soft bottom edge technology, and our optional Controlled Action Release Exit (C.A.R.E.)™ feature. The ISO-Roll 315™ is the best cGMP and Annex 1 compliant cleanroom fabric door option for superior performance in a minimalist design.

The ISO-Roll 315™ advances the high standard of ASI fabric door quality and performance into an ultra-compact package requiring only 12-1/2” of vertical headroom and 3-3/8” clearance for each side column.

Curtain Construction

12' x 12' maximum door size

.030 antimicrobial UV‐resistant PVC material

Self-reinserting without manual intervention

Full flexible panel

No rigid bars or internal framework

Soft bottom with integrated wireless reversing edge

White or blue standard (Others available)

Frame & Shroud Construction

Compact 12” standard header is the industry’s shortest

304 stainless steel side frames with covers

Engineered for easy wipe-down/washdown

Integrated retention & seal system

Maximum durability for high-traffic areas

Slim 12” head projection from the wall

Operator Features

Fully encased high performance 1 HP electric motor

120/208/230V single-phase or 208/230/460//575 three-phase

Single photo eye system included as standard

Bottom edge sensor monitors curtain travel & will reverse if obstructed

Back-roll Prevention System BPS™

Absolute encoder position control

Adjustable open & close speeds

Up to 80 inches/second opening speed

Available Options

28” high, full width, clear PVC vision panel

Easy release C.A.R.E. feature for exit during power loss

Pre-announce to close (auditory or illuminated)

Multiple activation options available

Multi-door interlock configuration

Remote reversing edge receiver for areas with poor signal

Frame & shroud construction in 316 stainless steel

Connect with an ASI Doors Rep for more information. Find a Rep
