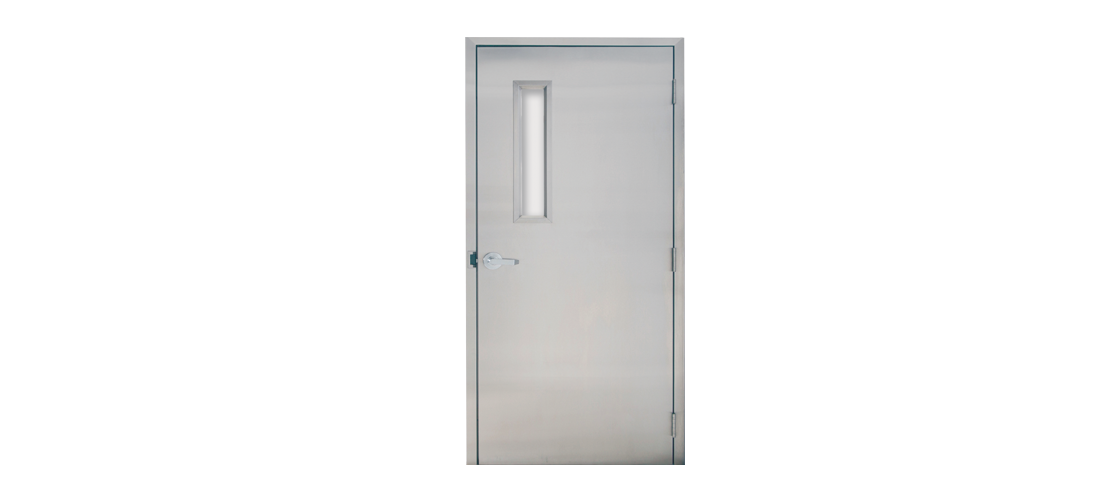

Model 220ssf & 225ssf / Single swinging U.L. Rated fire door

Stainless Steel Single Swing Fire Door

Door Sizes

  • Up to 4' x 9' (For additional sizes - consult factory)

Construction

  • 1-3/4” thick 16 ga. 304 #4 stainless steel continuously welded, ground smooth refinished and repolished on all four sides and corners.
  • All hardware locations reinforced with internal steel backing plates
  • 16 ga., 304 #4 stainless steel fully welded and polished (through frame faces and throat) stainless steel with 20 ga. stainless steel covers
  • Available in single or double rabbet construction
  • Prepped for a wide variety of hardware options
  • Fire ratings include 20-min, 45-min, 60-min, 90-min, 3-hours (rating determined during quote stage)

Hardware

  • Grade 1 Architectural hardware standard
  • Hager BB1191 standard weight stainless steel fully mortised hinges
  • LCN 4041 heavy-duty closer
  • Stainless steel push/pull hardware
  • Frame mounted, three sided bulb type perimeter gasket and bottom sweep gasket

Features

  • Manual open with standard spring assist closer
  • Power operation utilizing an electromechanical operator, microprocessor controlled in 120 volt, single phase, with mechanical spring close
  • Operator completely enclosed within a 16 ga. 304 #4 stainless steel sloped shroud
  • Overhead presence sensor to provide threshold and swing slide obstruction detection
  • Activation device to open; time delay to close
  • In case of power failure, door can be opened manually

Options

  • U.L. rated vision panel with U.L. rated standard sloped frame (size and material subject to U.L. guidelines)
  • All stainless steel construction available in 316L
  • 14 ga. stainless steel frames
  • Custom designed interlocking system
  • Hospital stops 4” or 6”
  • Stainless steel closer cover
  • Can provide any major lines and grades of architectural hardware
  • POWER MODELS ONLY
  • Actuators: Variety of activation devices available

Warranty

  • One year limited warranty on all components
