Model 415 / Gmp/fda compliant fabric clean room roll-up door

Roll-Up Door High Speed

Superior speed and seal

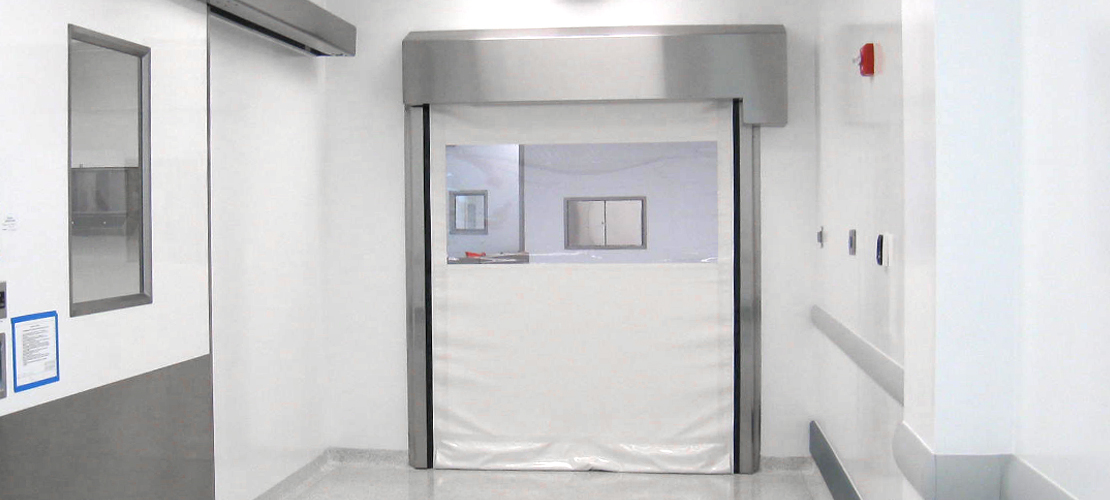

Clean Room Roll Up  Door

ASI Doors is a leading clean room door manufacturer delivering high-speed clean room roll-up doors for controlled environments. Combining simplicity and safety with superior seal efficiencies, the Iso-Roll high-speed fabric clean room roll-up door, utilizes a “soft seal” (no bottom bar) bottom edge, allowing the curtain to mold to your floor’s contours. A unique, low profile track continuously retains the curtain and stops air infiltration from the ground up, ensuring GMP, FDA & EMEA compliance.

Request a Quote

Door Sizes

  • Up to 12' x 12' (For additional sizes - consult factory)

Panel Construction

  • .030 thick multi-filament PVC coated curtain material, FDA compliant
  • White or blue color curtain standard (Other colors available upon request)
  • 28" high, full width, clear PVC vision panel
  • No windknobs or windbars required
  • Soft bottom edge - no bottom bar required

Frame & Shroud Construction

  • Side frames constructed with 12 ga., 304 #4 stainless steel with 20 ga. stainless steel covers
  • Side frames designed for maximum durability and easy wipe-down/wash-down with quick inspection
  • 16 ga. sloped shrouds completely enclose the curtain roll and drive motor

Operator Features

  • High performance, high efficiency 1 HP electric motor
  • Available in 120/208/230v single-phase, or 460v three-phase power
  • Absolute encoder controlled
  • Adjustable open and close speeds up to 50"/sec. (50"/sec. open and 25"/sec. close std.)
  • Send & Receive reversing photo-eye package included
  • Manual motor override for opening without power


  • Manual release
  • Custom designed interlocking system
  • Touchless activation devices
  • Time delay close
  • Battery back-up system (120 volt AC only)
  • Pre-announce to close kit
  • Remote mount push buttons
  • Photoeye or motion sensor activation
  • Consult factory for window options
  • Radio control activation-single or multi-channel transmitter
  • Dual Send & Receive reversing photo-eye package


  • One year limited warranty on all components
